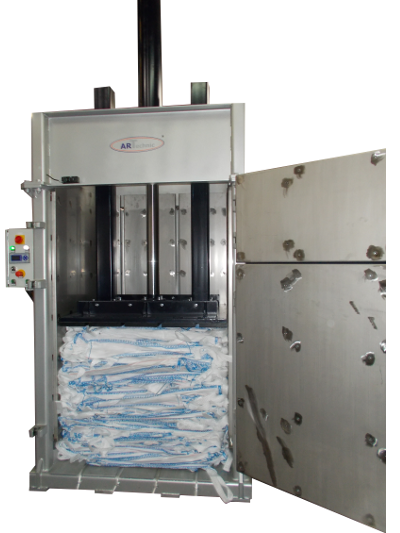

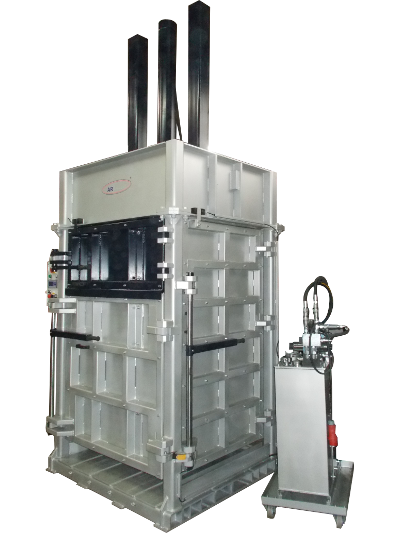

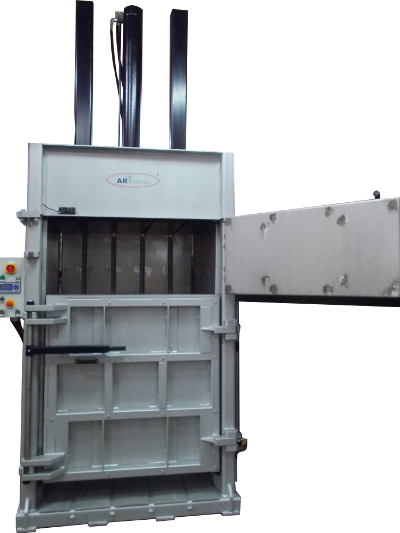

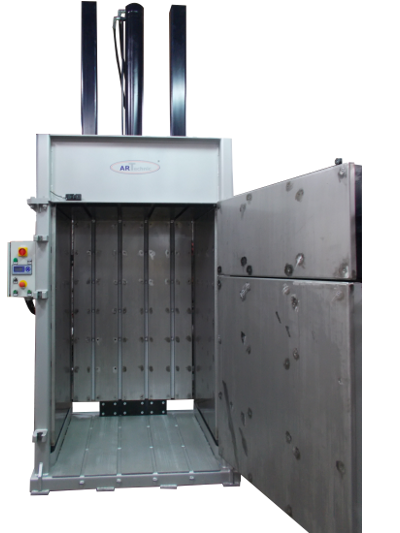

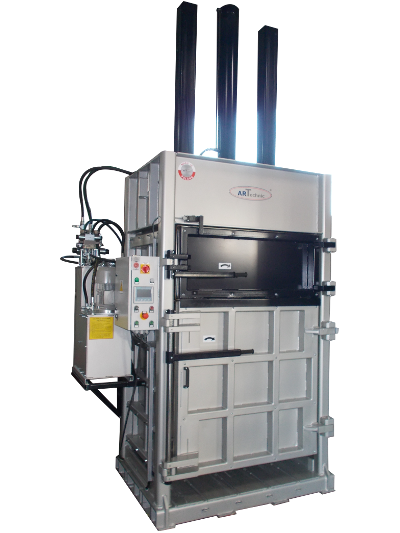

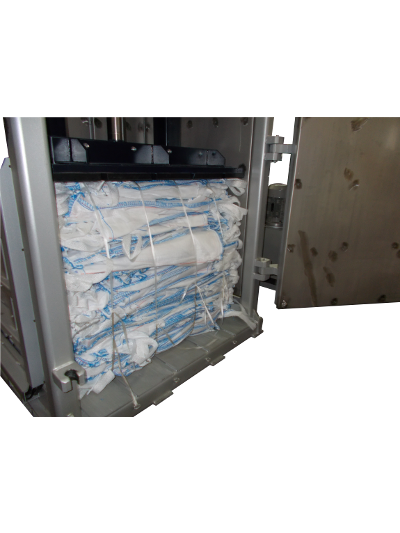

Baler, press for packagins BIG BAG type PBB300 with hydraulic ejection system
BIG-BAG
belownica_prasa_do_bigbag_1a

Technical specification

Number of chambers:
single
Number of strappings:
4
Charging hole:
1215 x 520 mm
Bale launch:
automatic - hydraulic ejector
Max. pressure:
300kN (30 tons)
Supply:
400/50 [V/Hz]
Unit pressure:
3,12 kg/cm2
or 2,5 kg/cm2
Socket:
400/16A
Bale dimensions:
1200x800xreg mm
or 1200x1000xreg mm
Fuse protection:
10C

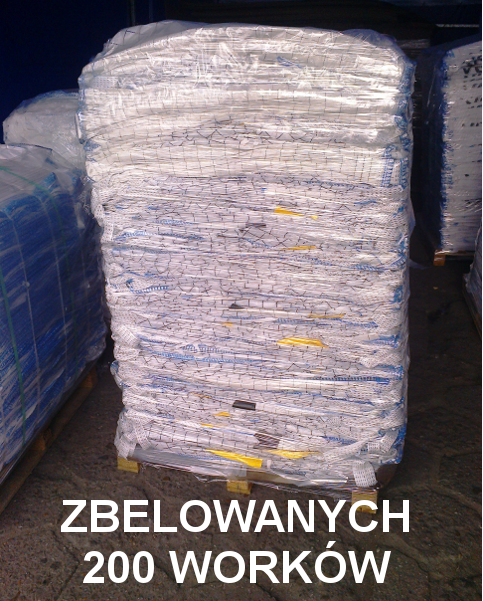

Ilość worków w beli:
200-400
Engine power:
4 kW
Productivity:
ca. 3 bale/h.
Work cycle:
ca. 50 seconds
Loading:
frontal
Weight:
4000 kg
Bale tying:
manual

Dimension

bigbag
Legend
[mm]
A
Height
3890
B
Width
1730
C
Depth
2600/1500
D
Transport height
2700
E
Door height
2050
F
Depth with open door
3815
G
Filling inlet
1215 x 520

Advantages of the machine

  • The moving of the pressing plate is kept extremely rigid and straight. The hydraulic cylinder does not take the bending forces from the pressing plate, which could lead to its damage. These forces are taken over by special plastic guides which are tailored to the corners of the chamber. The guides are made from specially chosen plastic, which is characterized by very high resistance to abrasion.Therefore, these elements are extremely durable. This avoids the need to control the tilt of the pressing plate. Because of all this you can easily exploit our machines, even for very demanding materials, without worrying of an improperly use of the machine.
  • The steel construction of our machines is designed to withstand loads far in excess of the rated load for the different models (this is why our machines have a generally bigger own mass compared to the competition)
  • Possibilty to bind the packages (bales) with all commonly used materials like a polyester tape, twine or steel wire
  • The possibility of producing specified machines concerning the customer’s request e.g. changes in the stroke of the pressing plate, changes in the loading hole, changes in the size of the bale, etc.
  • Possibility to choose the version of the controller, and to choose additional options, depending on individual needs
  • Unmanned and durable hydraulic system
  • No hidden costs of operating the machine
  • zintegrowany zasilacz hydrauliczny (opcja: wolnostojący)
  • hydrauliczny wypychacz gotowego pakietu
  • sterowanie PLC z wyświetlaczem
  • nacisk 30 T (regulacja w zakresie 10-30T)

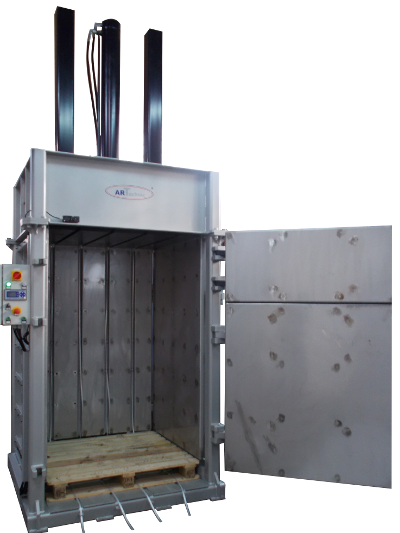

  • prasowanie na paletach Euro1 i Euro 3
  • komora wyłożona stalą nierdzewną
  • wysokość gotowego pakietu 65-140 cm

Steering

Steering x (EXTRA)

  • Controller SIEMENS S7
  • Automatic digital steering of the work cycle
  • Finished-bale signal
  • LCD display
  • Stepless maximum pressure regulation with 1 ton progression
  • Stepless bale height regulation with 2 cm progression
  • Daily/weekly/monthly statistics – the readout of the number of finished bales with their weight estimation
  • Different programs for different materials
  • Possibility of regulating the length of time for which the pressing plate stays in the lower position
  • the ability to connect the machine to the statArtechnic

Control Panel

belownica_do_odpadow_pbts640_4

Tapes for bale tying

Specification:

Width [mm]
Endurance [mm]
Tape length in roll [mb]
19
725
250
6 (string)
590
200
