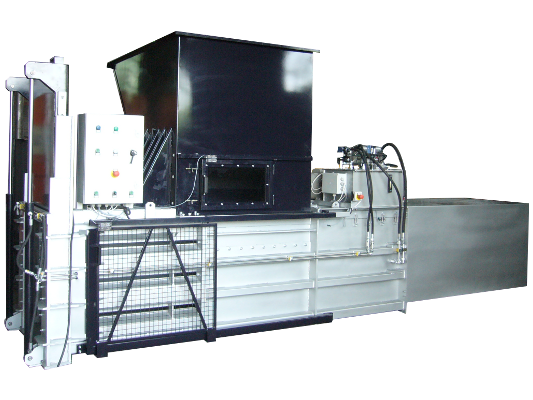

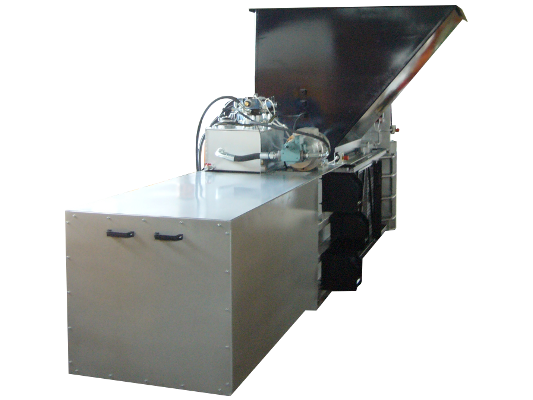

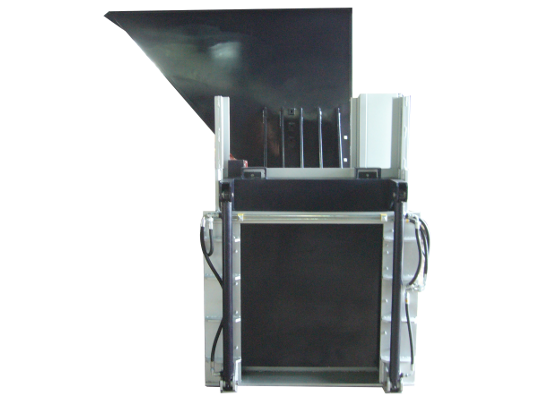

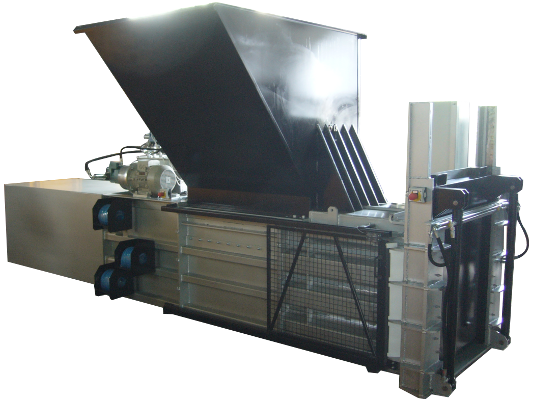

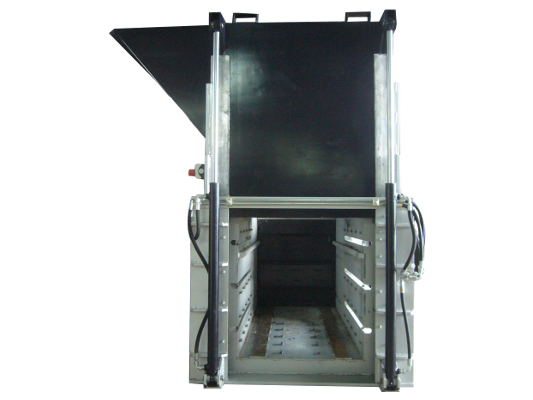

Waste balers type PBPe200-o
series 800x700

Technical specification

Number of chambers:
single
Number of strappings:
3
Charging hole:
1000 x 700 mm
Bale launch:
automatic
Max. pressure:
200kN (20 tons)
Supply:
400/50 [V/Hz]
Unit pressure:
3,57 kg/cm2
Socket:
400/32A
Bale dimensions:
800 x 700 x 800-1100 mm
Fuse protection:
20C
Bale weight:
ca. 150 - 250 kg
Engine power:
5,5 kW
Productivity:
ok. 3 bale/h.
Weight:
4500 kg
Loading:
top
Bale tying:
manual

Dimension

pozioma1
Legend
[mm]
A
Length
5050
B
Height
2120
C
Width
1350
D
Filling inlet
1000 x 700

Steering

Steering x (EXTRA)

  •     Controller PLC
  •     Automatic digital steering of the work cycle
  •     Finished-bale signal
  •     LCD display
  •     Stepless maximum pressure regulation with 1 ton progression
  •     Stepless bale height regulation with 2 cm progression
  •     Daily/weekly/monthly statistics – the readout of the number of finished bales with their weight estimation
  •     Different programs for different materials
  •     Possibility of regulating the length of time for which the pressing plate stays in the lower position the ability to connect the machine to the statArtechnic

Control Panel

x
  1. Main switch with the possibility to lock in position “0” (prevents from an use of the machine by unauthorized persons)
  2. The white light “PACKET” indicates that the press has achieved the maximum filling
  3. LCD and control panel
  4. The green light “POWER” indicates a connection of the bale to power and that the main switch is turned ON
  5. Emergency “STOP” switch
  6. Button “START” – starts the pressing process
  7. Buttons “THROW-OFF”. Two-handed operation – controler for the bale ejector

Tapes for bale tying

Specification:

Width [mm]
Endurance [mm]
Tape length in roll [mb]
19
725
250
6 (sznurek)
590
220
Width [mm]
Endurance [daN]
Weight [kg]
3
<400
40
