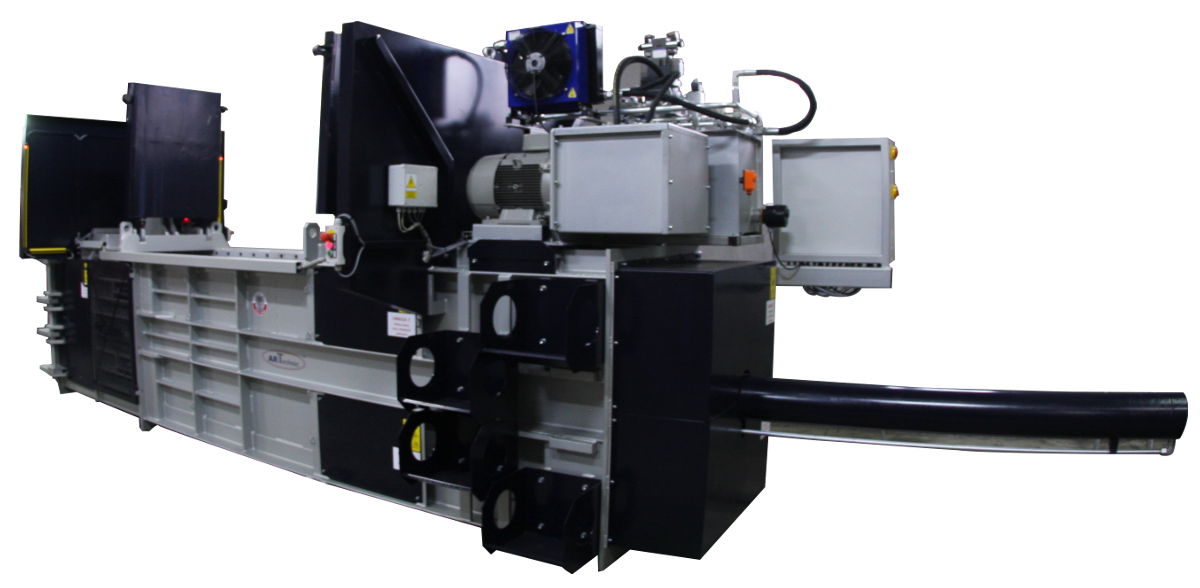

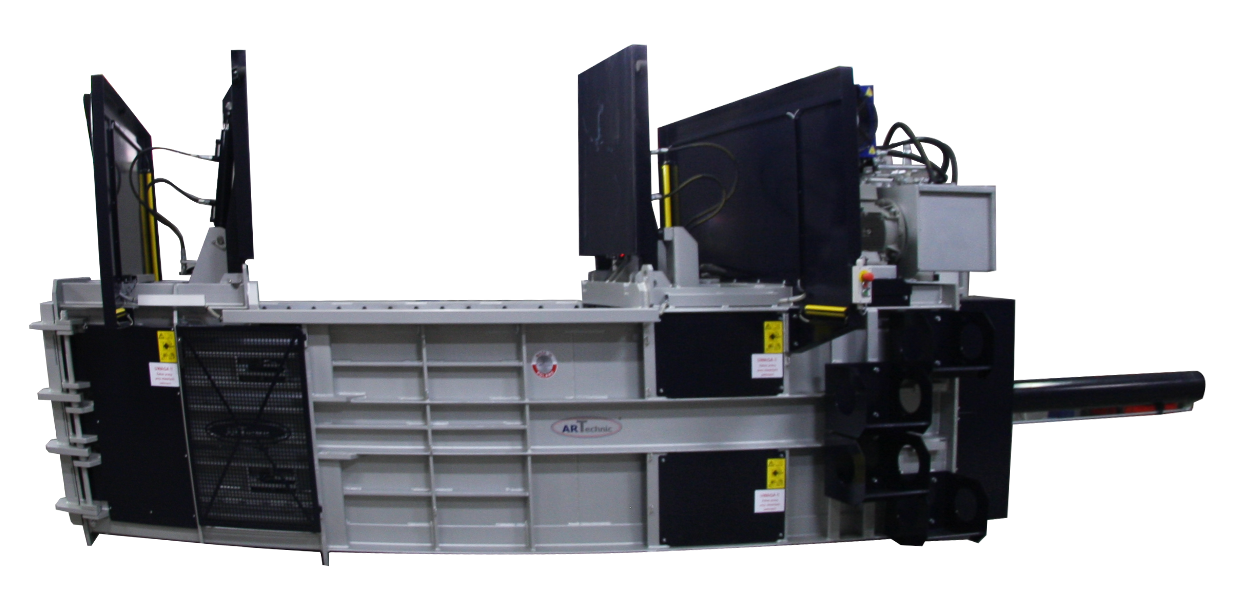

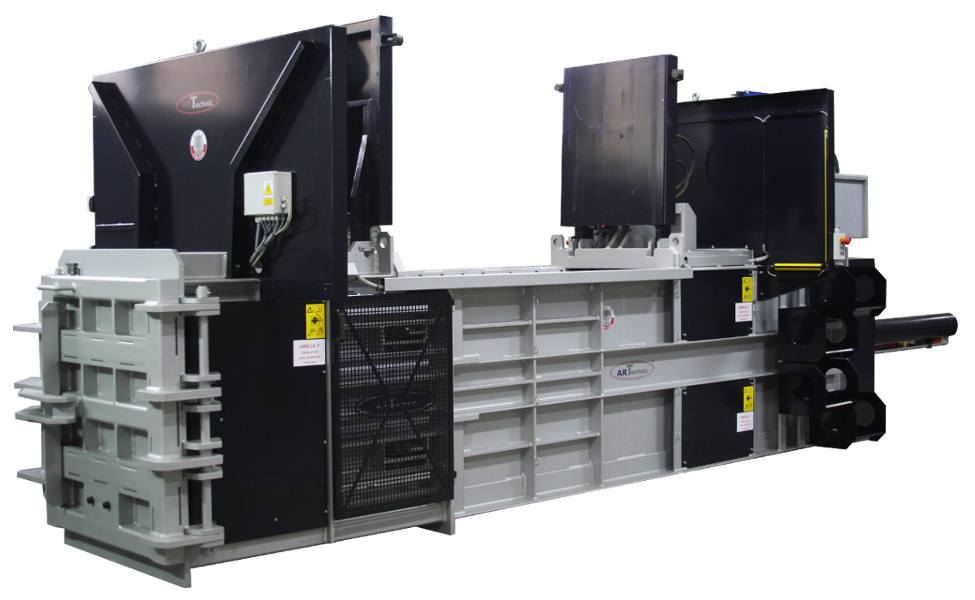

Waste balers type PBPe500-k
series 1100x780

Technical specification

Number of chambers:
single
Number of strappings:
4
Charging hole:
2000 x 720 mm
Bale launch:
automatic, complete
Max. pressure:
500kN (50 ton)
Supply:
400/50 [V/Hz]
Unit pressure:
5,82 kg/cm2
Socket:
400/63A
Bale dimensions:
1100 x 780 x 600-1500 mm
Fuse protection:
32C
Bale weight:
ca. 200 - 600 kg
Engine power:
15 kW
Productivity:
ca. 2-6 bale/h.
Weight:
8500 kg
Loading:
top
Bale tying:
manual

Dimension

poziomaklapowa2
Legend
[mm]
A
Length
7460
B
Height
2480
C
Wwidth
2550
D
Filling inlet
2000 x 720

Advantages of the machine

bez

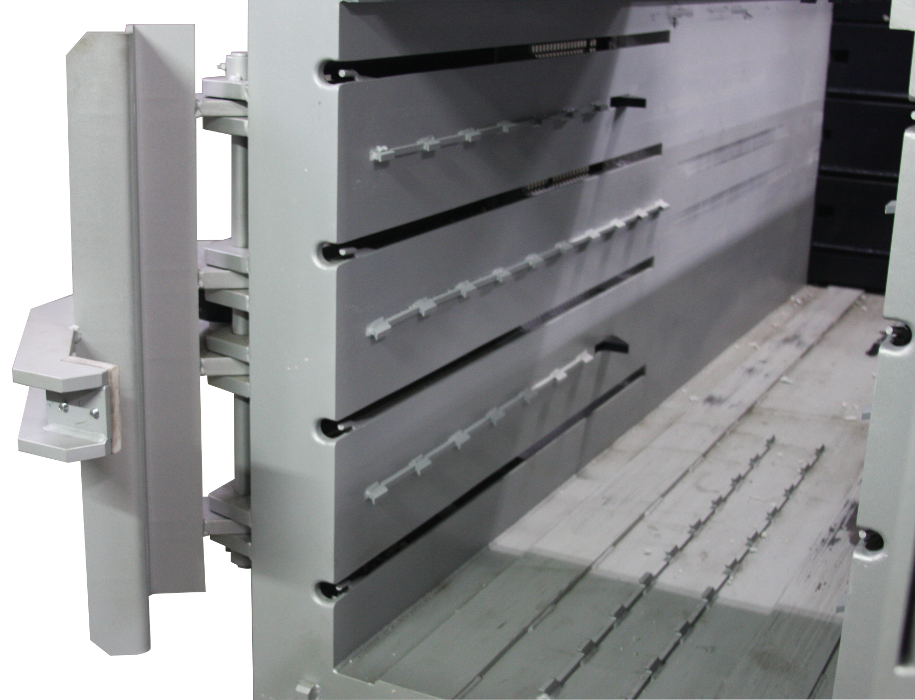

Safety - is our priority. You can meet a lot of machines on the market, which, despite the declaration of conformity and CE marking do not comply with the basic assumptions of European Safety Standards. Below you may find a few basic safety elements used in our machines: - Protection of tying zone

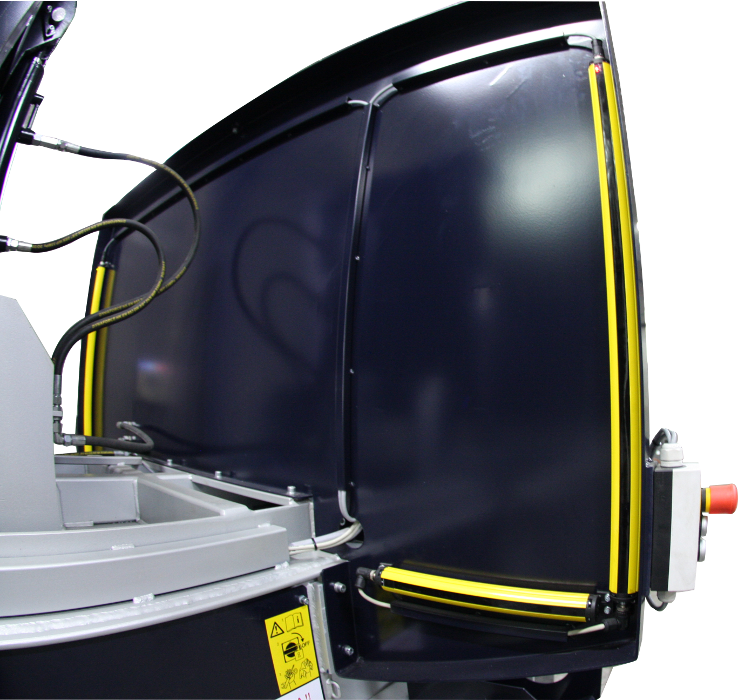

Protection of feeding zone
4
stop
STOP switches
Security module SCHMERSALL
modul
Controller SIEMENS S7
sterowanie
przeciwplyta

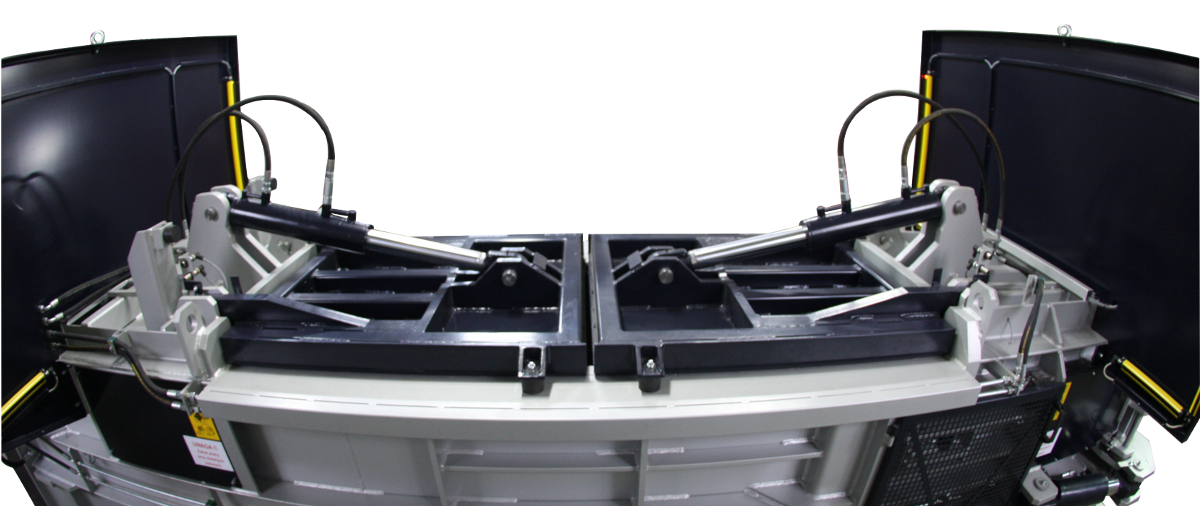

Hydraulicznie zamykana przeciwpłyta
Okna rewizyjne umożliwiające łatwą regulację płyty prasującej
regulacja_plyty
Grzałka oleju z termostatem umożliwijąca pracę w każdych warunkach atmosferycznych
termostat
wygluszenie
Zasilacz został wygłuszony dla lepszego komfortu pracy
Płyta prasująca w pełni wypycha gotową belkę
wyrzut



  • A system to prevent the decompressing of material after subsequent cycles of work.
  • Possibilty to bind the packages (bales) with all commonly used materials like a polyester tape, twine or steel wire
  • The possibility of producing specified machines concerning the customer’s request e.g. changes in the stroke of the pressing plate, changes in the loading hole, changes in the size of the bale, etc.
  • Possibility to choose the version of the controller, and to choose additional options, depending on individual needs
  • Unmanned and durable hydraulic system
  • No hidden costs of operating the machine

Steering

Steering x (EXTRA)

  • Controller SIEMENS S7
  • Automatic digital steering of the work cycle
  • Finished-bale signal
  • Stepless maximum pressure regulation with 1 ton progression
  • Stepless bale height regulation with 2 cm progression
  • Daily/weekly/monthly statistics – the readout of the number of finished bales with their weight estimation
  • Different programs for different materials
  • Possibility of regulating the length of time for which the pressing plate stays in the lower position
  • the ability to connect the machine to the statArtechnic

Control Panel

xxx
belownica_do_odpadow_pbpe500o_8
belownica_do_odpadow_pbe500_8

Film

Tapes for bale tying

Specification:

Width [mm]
Endurance [mm]
Tape length in roll [mb]
19
725
250
6 (string)
590
220
Width [mm]
Endurance [daN]
Weight [kg]
3
<400
40
