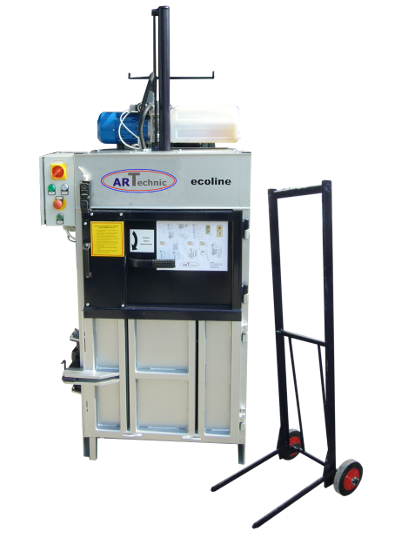

Waste balers type PBe20
series 600
belownica_do_odpadow_pbe20_1a

Technical specification

Number of chambers:
single
Number of strappings:
2
Charging hole:
650 x 430 mm
Bale launch:
manual – by a special truck
Max. pressure:
20kN (2 tons)
Supply:
230/50 [V/Hz]
Unit pressure:
0,83 kg/cm2
Socket:
230
Bale dimensions:
600 x 400 x 500 mm
Fuse protection:
10C
Bale weight:
ca. 30 - 50 kg
Engine power:
1,5 kW
Productivity:
ca. 3 - 4 bale/h.
Work cycle:
ca. 24 sekunds
Loading:
frontal
Weight:
400 kg
Bale tying:
manual

Dimension

w2
Legenda
[mm]
A
Height
2025
B
Width
900
C
Depth
700
D
Transport height
1750
E
Door height
1030
F
Depth with open door
1350
G
Filling inlet
650 x 430

Advantages of the machine

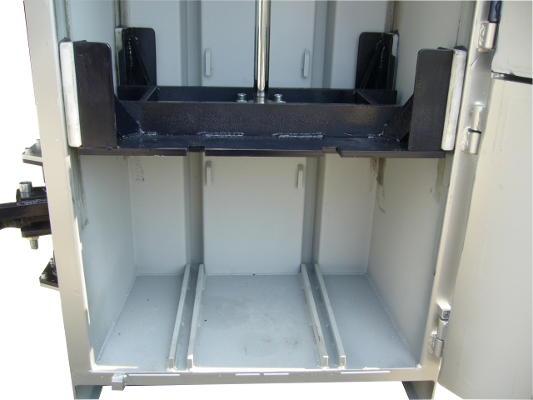

  • The moving of the pressing plate is kept extremely rigid and straight. The hydraulic cylinder does not take the bending forces from the pressing plate, which could lead to its damage. These forces are taken over by special plastic guides which are tailored to the corners of the chamber. The guides are made from specially chosen plastic, which is characterized by very high resistance to abrasion.Therefore, these elements are extremely durable. This avoids the need to control the tilt of the pressing plate. Because of all this you can easily exploit our machines, even for very demanding materials, without worrying of an improperly use of the machine.
  • The steel construction of our machines is designed to withstand loads far in excess of the rated load for the different models (this is why our machines have a generally bigger own mass compared to the competition)
  • A system to prevent the decompressing of material after subsequent cycles of work.
  • Possibilty to bind the packages (bales) with all commonly used materials like a polyester tape, twine or steel wire
  • The possibility of producing specified machines concerning the customer’s request e.g. changes in the stroke of the pressing plate, changes in the loading hole, changes in the size of the bale, etc.
  • Possibility to choose the version of the controller, and to choose additional options, depending on individual needs
  • Unmanned and durable hydraulic system
  • No hidden costs of operating the machine

Steering

Steering p (PLUS)

  • Controller PLC
  • Automatic digital steering of the work cycle
  • Finished-bale signal

Control Panel

  1. Main switch;
  2. A green light indicates a connection of the bale to power and that the main switch is turned ON;
  3. Emergency STOP switch;
  4. Button START starts the pressing process;
  5. The white light PACKET indicates that the press has achieved the maximum filling;

Tapes for bale tying

Specification tape:

Width [mm]
Endurance [daN]
Tape length in roll [mb]
9
275
500
13
375
250
